Hey all,

This one was finished out of order. I had it almost done about 18 months ago, but while I was doing the final polish, I sanded through the finish in one spot. That took the wind out of my sails a bit, so I re-coated the offending area and set it aside.

Then last week decided it was time to finish it. I very carefully sanded the lacquer level again in that spot, and almost sanded through again. But it’s not too noticeable, and anyway, I’m done. :D I buffed it up, glued on the bridge and neck, and strung it up.

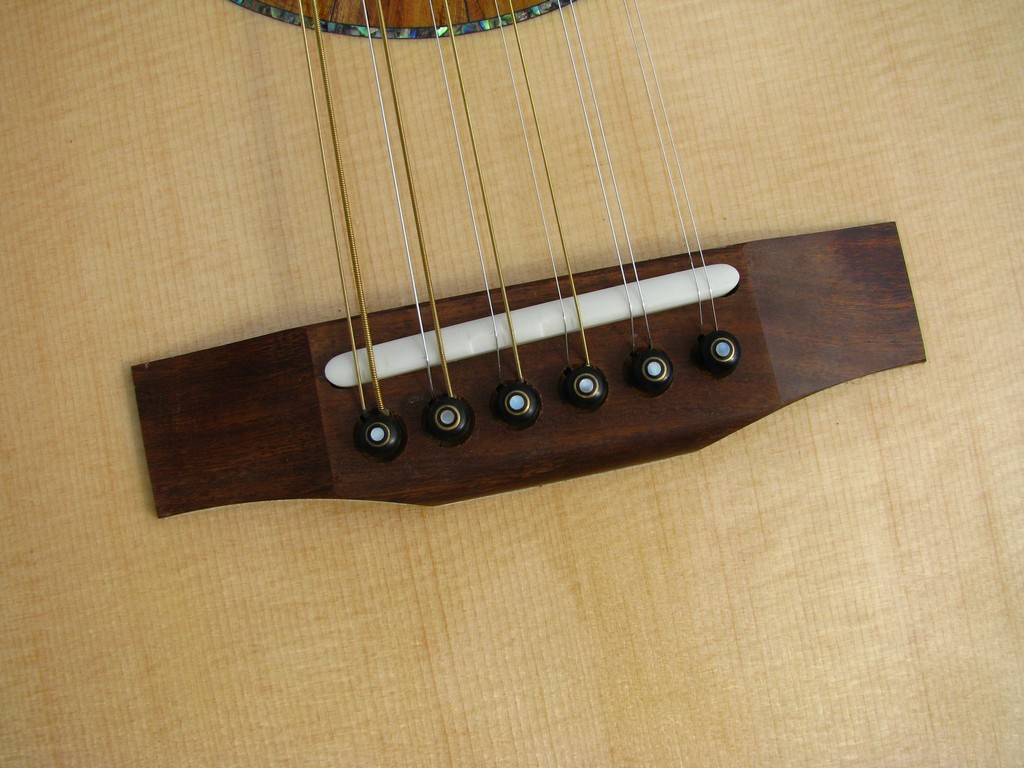

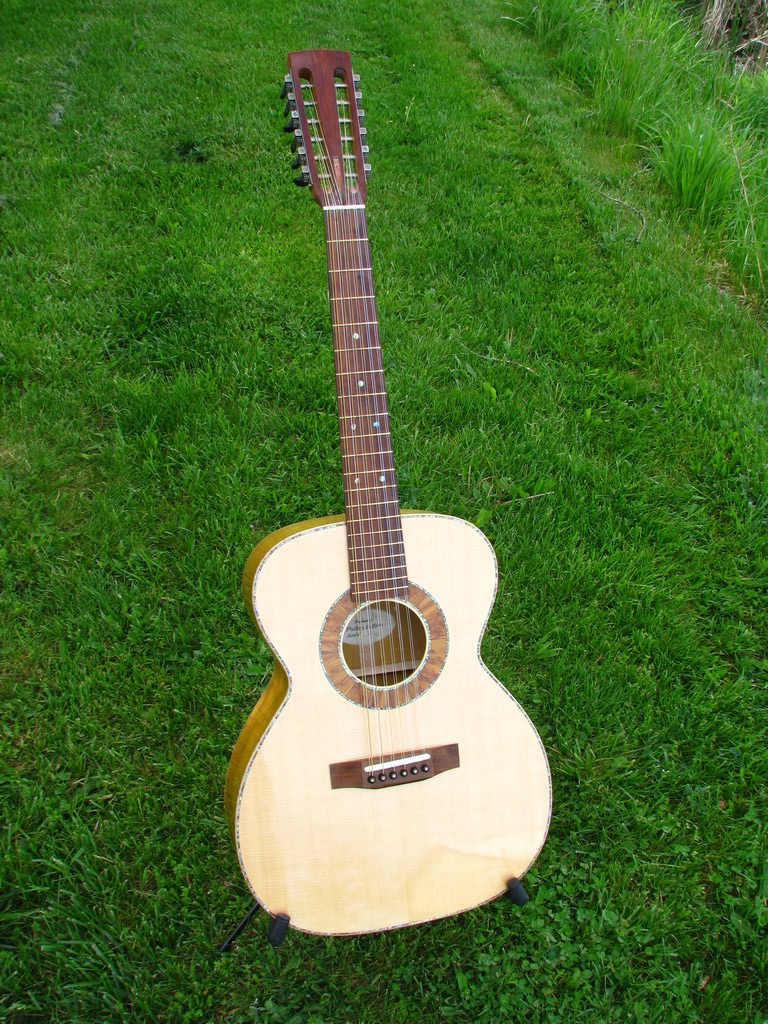

This is the third 12 string acoustic I’ve made, and I tried a few new things. I used the shared-pin method, where the bridge only has 6 pins, with two strings per pin. (Thanks to whoever did the tutorial on that!) And I compensated the saddle, which should always be done anyway of course, but I just didn’t bother with the other two. I also put two carbon fiber bars in the neck.

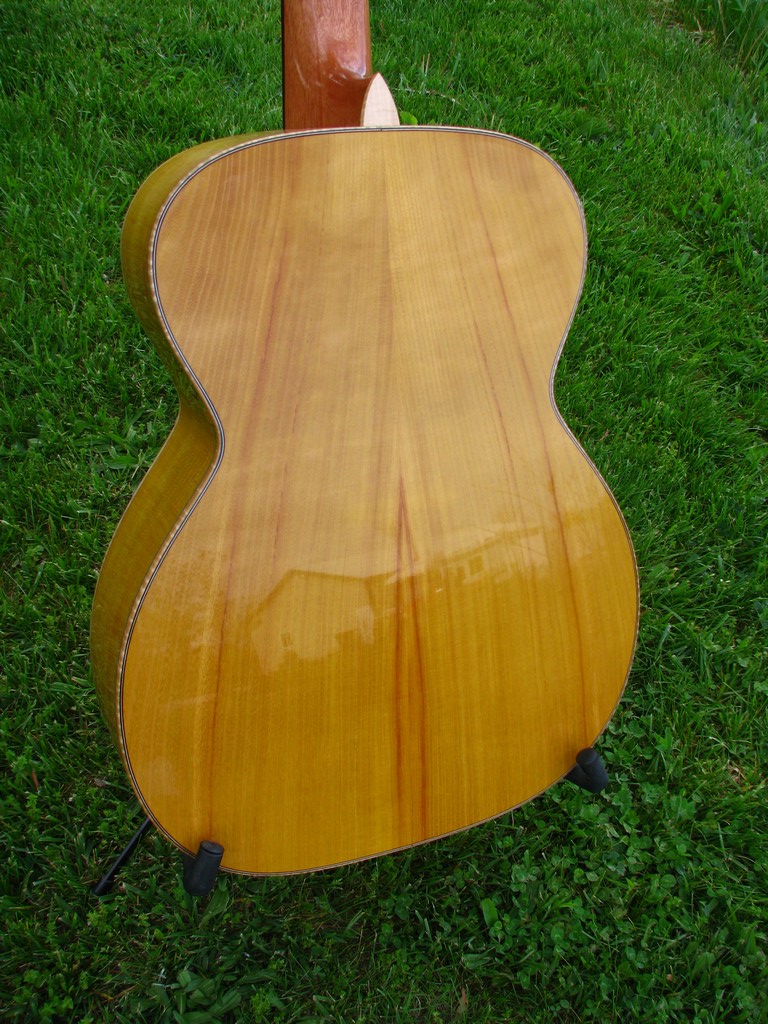

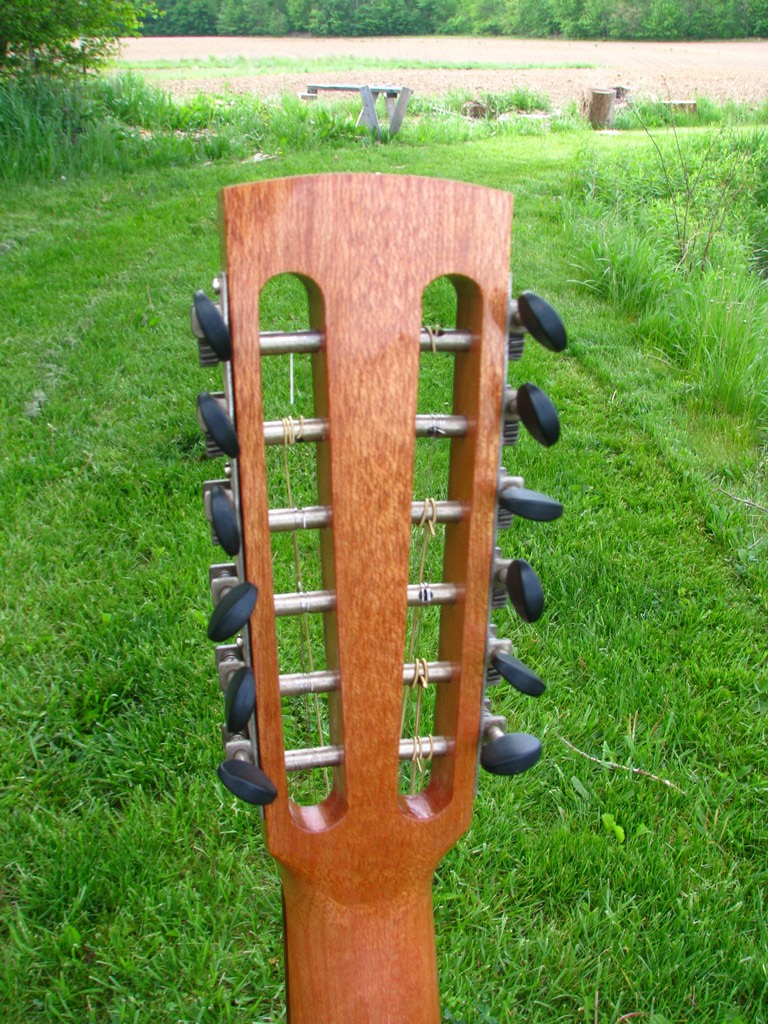

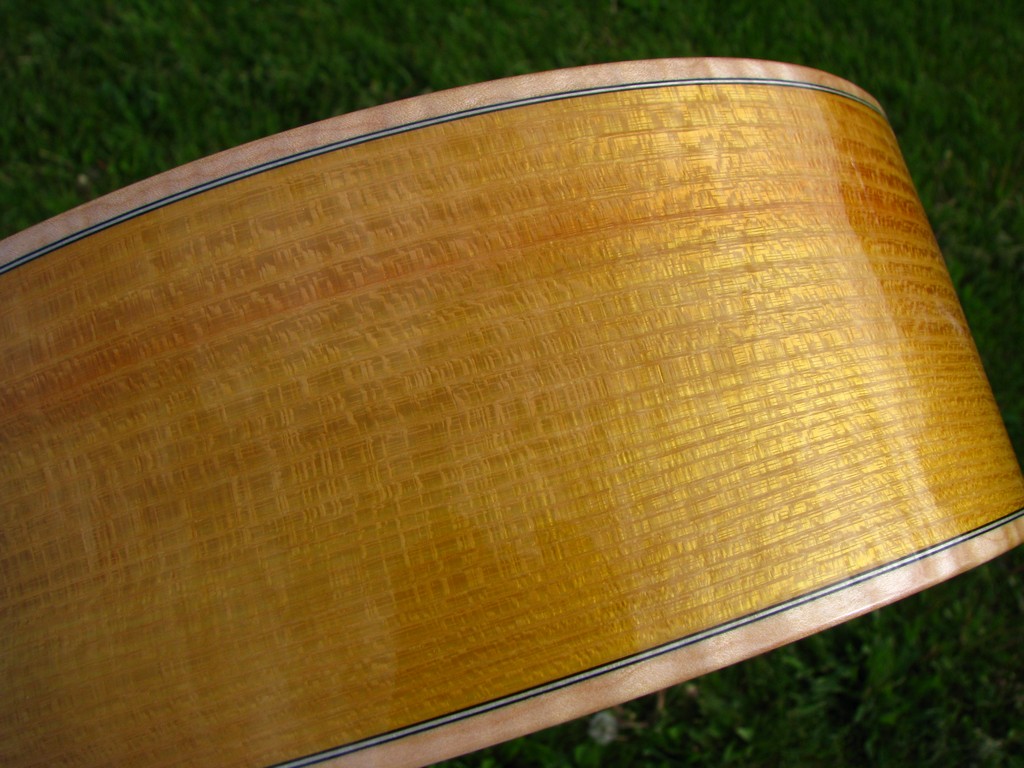

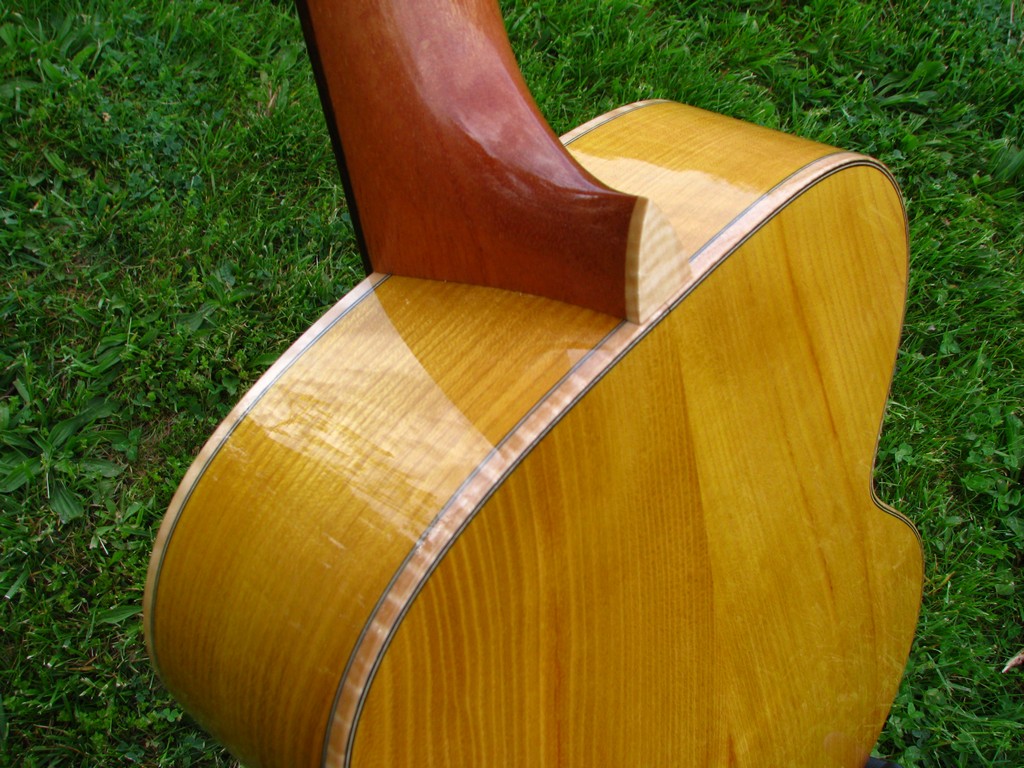

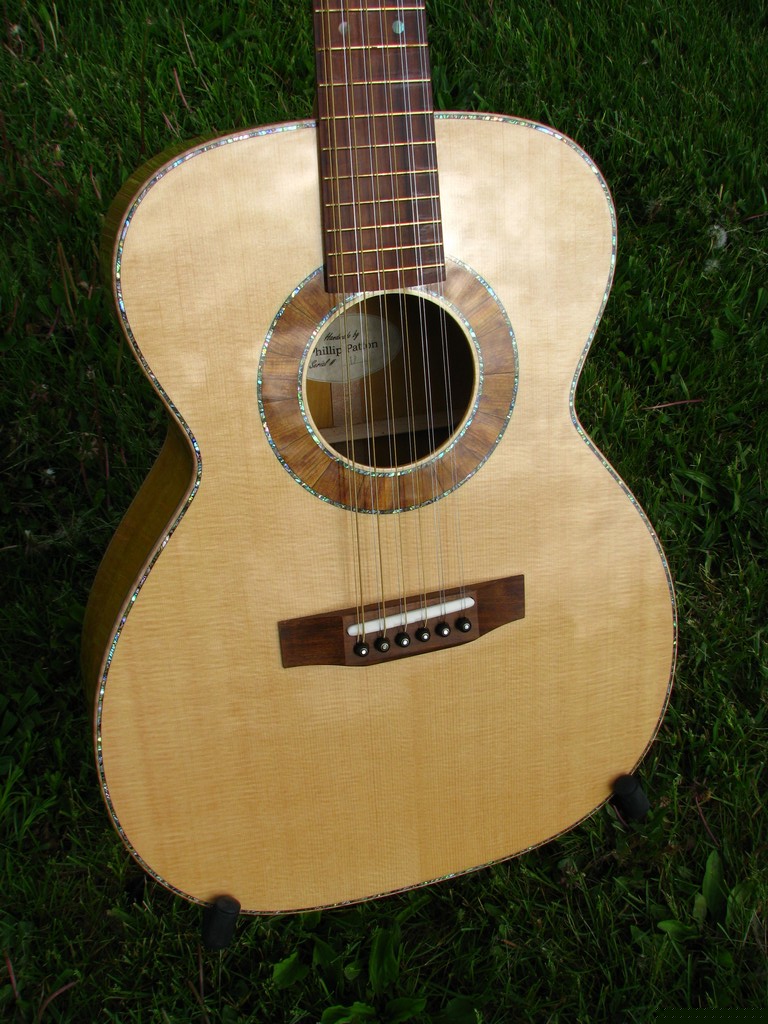

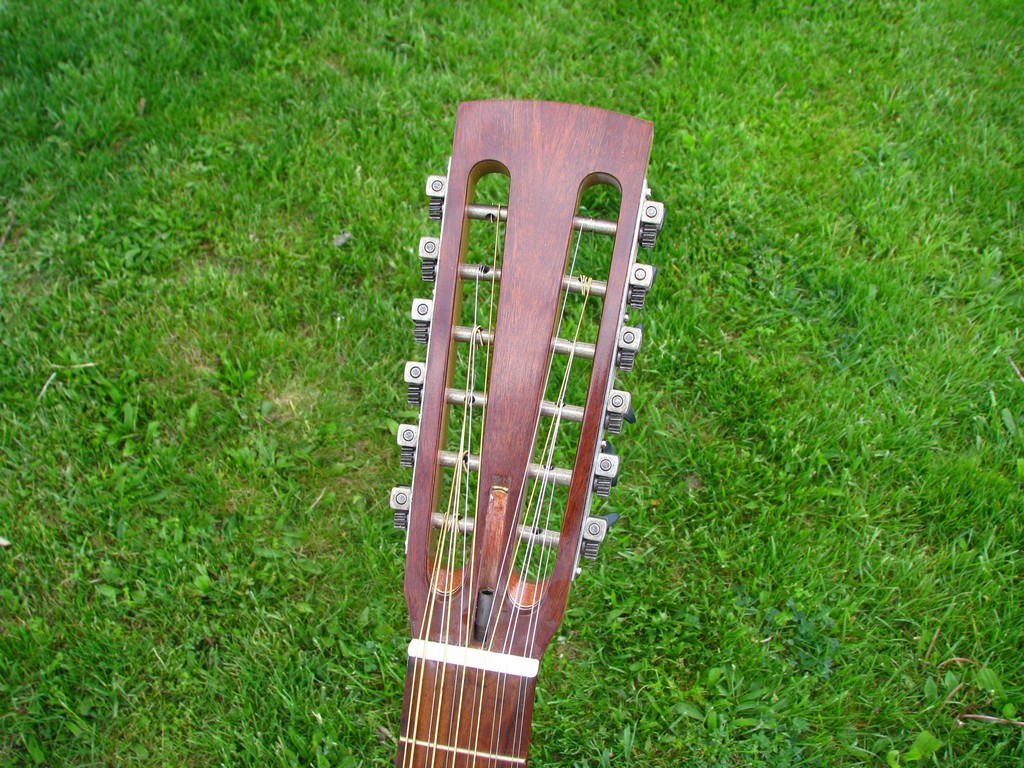

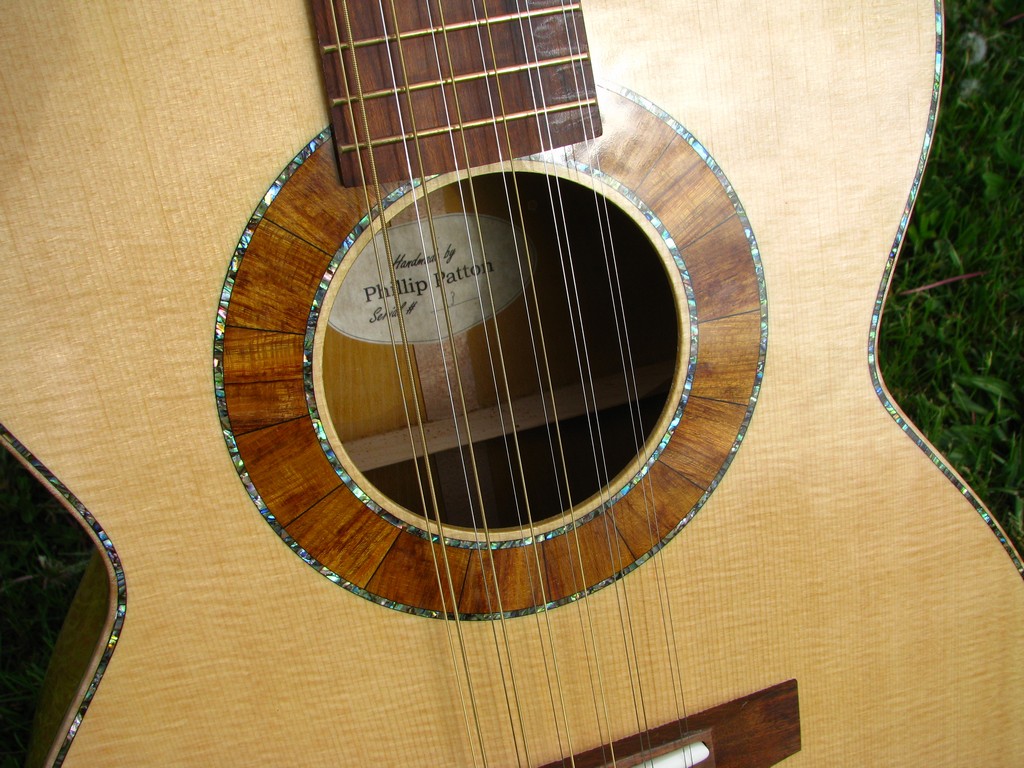

I used Arizona desert ironwood for the bridge, fretboard, and head stock veneer. The bindings are curly maple. The rosette is osage orange and abalone. The top purflings are abalone also. The top is lutz spruce from Shane, and the back and sides are osage orange from the county south of me. The action needs some more work, but it sounds great! I also need to make a cover for the truss rod access slot, and I need to level the frets.

Some pictures:






_________________
Regards,
Phillip Patton

http://www.pattonblades.com

The bitterness of poor quality lingers long after the sweetness of low price has faded.

https://hoosierbladesmith.wordpress.com


Top
 Profile

PostPosted: Fri May 17, 2013 3:01 pm
Offline
Cocobolo
Cocobolo
User avatar

Joined: Sun Dec 27, 2009 2:59 pm
Posts: 458
Location: Northeast Indiana
First name: Phillip
Last Name: Patton
City: Yoder
State: IN
Zip/Postal Code: 46798
Country: USA
Focus: Build
Status: Amateur





_________________
Regards,
Phillip Patton

http://www.pattonblades.com

The bitterness of poor quality lingers long after the sweetness of low price has faded.

https://hoosierbladesmith.wordpress.com


Top
 Profile

PostPosted: Fri May 17, 2013 3:17 pm
Offline
Contributing Member
Contributing Member

Joined: Sat Feb 19, 2011 7:44 pm
Posts: 1225
Location: Andersonville
State: Tennessee
Country: USA
Focus: Build
Status: Professional
Nice guitar, that Osage Orange is spectacular.


Top
 Profile

PostPosted: Fri May 17, 2013 3:23 pm
Offline
Contributing Member
Contributing Member
User avatar

Joined: Sun Mar 06, 2011 12:04 am
Posts: 5897
First name: Chris
Last Name: Pile
City: Wichita
State: Kansas
Country: Good old US of A
Focus: Repair
Status: Professional
Man.... I wanna build with Osage Orange, too.

Very nice guitar, well done!

_________________
"Act your age, not your shoe size" - Prince


Top
 Profile

PostPosted: Fri May 17, 2013 7:55 pm
Offline
Contributing Member
Contributing Member
User avatar

Joined: Tue Oct 12, 2010 9:01 pm
Posts: 3031
First name: Tony
Last Name: C
City: Brooklyn
State: NY
Focus: Build
Status: Amateur
Beautiful job! I also like the bridge treatment. Well done!

_________________
http://www.CostaGuitars.com
PMoMC


Top
 Profile

PostPosted: Fri May 17, 2013 9:00 pm
Offline
Contributing Member
Contributing Member

Joined: Tue Jan 03, 2006 1:47 pm
Posts: 1624
Location: United States
First name: Larry
Last Name: Hawes
Focus: Build
Status: Amateur
So unique in so many good ways. Nice, nice job.

_________________
Thank You and Best To All


Top
 Profile

PostPosted: Sat May 18, 2013 9:50 pm
Offline
Contributing Member
Contributing Member
User avatar

Joined: Wed Jan 13, 2010 12:46 am
Posts: 1247
First name: Beth
Last Name: Mayer
City: Tucson
State: AZ
Country: United States
Focus: Build
Status: Amateur
Very nice....lots of glamour there :)


Top
 Profile

PostPosted: Sat May 18, 2013 10:28 pm
Offline
Contributing Member
Contributing Member
User avatar

Joined: Thu May 12, 2005 5:46 am
Posts: 2997
Location: United States
That's really nice, way to go!
You should do Damascus steel frets on your next one! :)

_________________
Jim Watts
http://jameswattsguitars.com


Top
 Profile

PostPosted: Sat May 18, 2013 11:02 pm
Offline
Contributing Member
Contributing Member

Joined: Sat Mar 09, 2013 1:53 pm
Posts: 76
First name: Garett
Last Name: Dixon
State: WY
Country: United States
Focus: Build
Status: Amateur
Quote:
That's really nice, way to go!
You should do Damascus steel frets on your next one!
+1 :D


Top
 Profile

PostPosted: Mon May 20, 2013 9:06 am
Offline
Contributing Member
Contributing Member
User avatar

Joined: Sun Jul 24, 2005 1:53 pm
Posts: 1075
Location: United States
First name: Coe
Last Name: Franklin
City: Decatur
State: IN
Country: USA
Looks great, Phillip!
I`m looking forward to using my set of Osage Orange.
Did you do anything to reinforce the bridgeplate to accomodate for the ball-end pressure being pretty much in line?
I`m just curious.
Coe Franklin

_________________
Give me 50 cents worth of regular.
Check my oil too, if you don`t mind,,,


Top
 Profile

PostPosted: Sat May 25, 2013 11:41 am
Offline
Cocobolo
Cocobolo
User avatar

Joined: Sun Dec 27, 2009 2:59 pm
Posts: 458
Location: Northeast Indiana
First name: Phillip
Last Name: Patton
City: Yoder
State: IN
Zip/Postal Code: 46798
Country: USA
Focus: Build
Status: Amateur
Cocephus wrote:
Looks great, Phillip!
I`m looking forward to using my set of Osage Orange.
Did you do anything to reinforce the bridgeplate to accomodate for the ball-end pressure being pretty much in line?
I`m just curious.
Coe Franklin


I'm sure you'll love working with the OO. It bends easier than any other wood I've used.

To answer your question, not really. I made the plate a little bigger (if I remember correctly) and made sure it was flatsawn, not quartersawn.

Thanks everybody for your comments! I'm really happy with how this one turned out, though there are still areas that could use improving...

_________________
Regards,
Phillip Patton

http://www.pattonblades.com

The bitterness of poor quality lingers long after the sweetness of low price has faded.

https://hoosierbladesmith.wordpress.com


Top
 Profile

PostPosted: Sat May 25, 2013 5:31 pm
Offline
Koa
Koa
User avatar

Joined: Thu Dec 18, 2008 11:42 am
Posts: 1135
Location: Hudson, MA
First name: Kevin
Last Name: Quine
City: Hudson
State: MA
Country: Usa
Focus: Build
Status: Amateur
Sweet. I love smaller bodied 12 strings. That's some of the nicest osage orange I've seen!!
Very interesting using only 6 bridge pins. Its a much cleaner look


Top
 Profile

PostPosted: Sat May 25, 2013 5:56 pm
Offline
Cocobolo
Cocobolo

Joined: Sun Jun 21, 2009 1:08 pm
Posts: 426
First name: jim
Last Name: mccarthy
City: ojai
State: ca
Zip/Postal Code: 93023
Country: usa
Focus: Build
I love the boldness of that rosette.


Top
 Profile

PostPosted: Sat May 25, 2013 10:25 pm
Offline
Contributing Member
Contributing Member
User avatar

Joined: Mon Mar 19, 2007 7:05 am
Posts: 9191
Location: United States
First name: Waddy
Last Name: Thomson
City: Charlotte
State: NC
Focus: Build
Status: Semi-pro
That all works! Very nice looking guitar.

_________________
Waddy

Photobucket Build Album Library

Sound Clips of most of my guitars


Top
 Profile

PostPosted: Sat May 25, 2013 11:12 pm
Offline
Cocobolo
Cocobolo

Joined: Sun Jan 27, 2008 5:21 pm
Posts: 251
Location: North Carolina
Very nice!

_________________
Greg Hatcher
North Carolina


Top
 Profile

PostPosted: Sat May 25, 2013 11:19 pm
Offline
Koa
Koa
User avatar

Joined: Fri Feb 01, 2008 11:37 pm
Posts: 1744
Location: Virginia, USA
Focus: Build
Status: Amateur
Beautiful work and beautiful guitar.
Is the Ironwood stained, or is that it's natural color?
If the latter, how prevalent or available is this wood? A readily available North American fretboard wood would be something I could get into.

_________________
Mike

The only thing nescessary for evil to thrive is for good men to do nothing.


Top
 Profile

PostPosted: Tue May 28, 2013 10:19 am
Offline
Cocobolo
Cocobolo
User avatar

Joined: Sun Dec 27, 2009 2:59 pm
Posts: 458
Location: Northeast Indiana
First name: Phillip
Last Name: Patton
City: Yoder
State: IN
Zip/Postal Code: 46798
Country: USA
Focus: Build
Status: Amateur
Mike Baker wrote:
Beautiful work and beautiful guitar.
Is the Ironwood stained, or is that it's natural color?
If the latter, how prevalent or available is this wood? A readily available North American fretboard wood would be something I could get into.

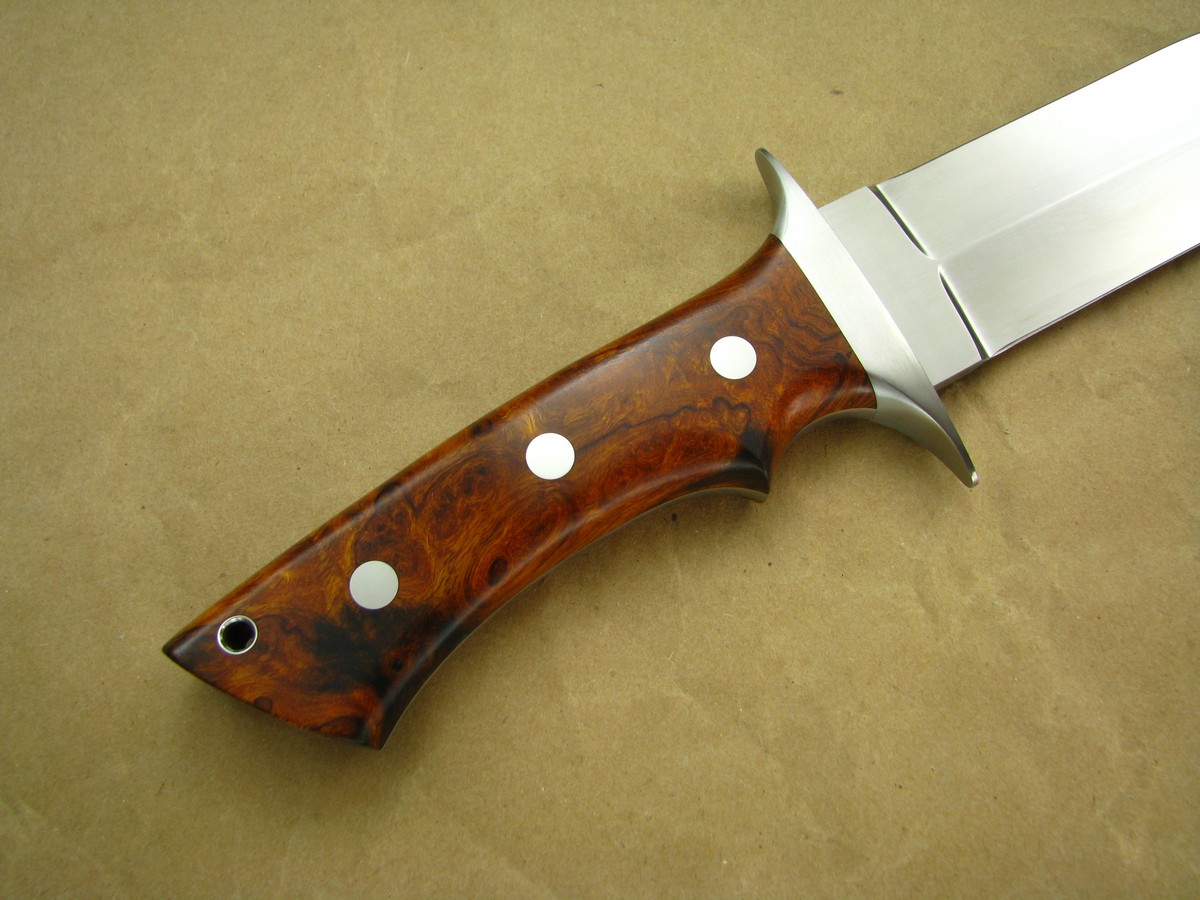

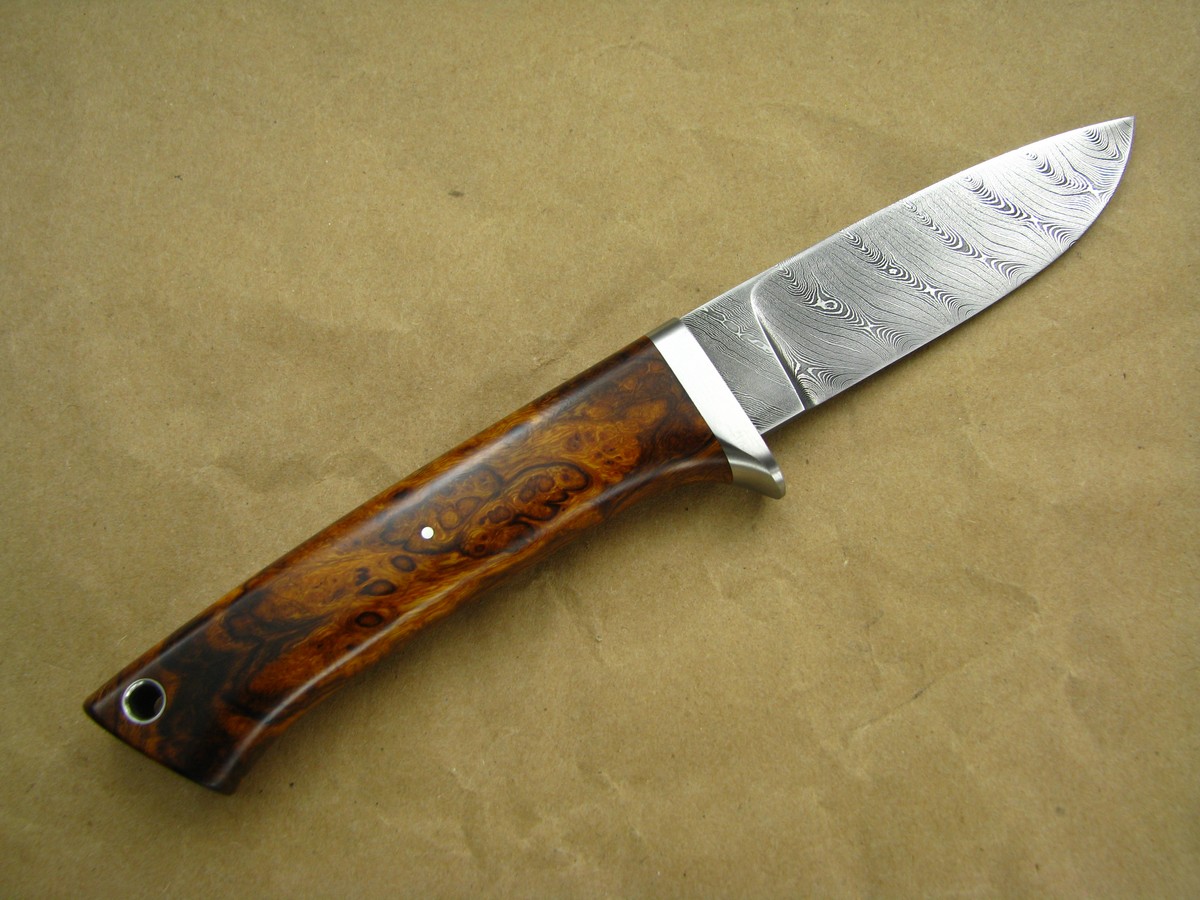

That's the natural color. It comes in different flavors. The stuff I used on this guitar is about as plain and straight grained as you can get with DI. It's more common to see it like it is on these two latest knives of mine:

http://www.pattonblades.com/052813-3.jpg

http://www.pattonblades.com/052713-3.jpg

It's a protected species, so you can't harvest live trees anymore. But it's still available, for now...

_________________
Regards,
Phillip Patton

http://www.pattonblades.com

The bitterness of poor quality lingers long after the sweetness of low price has faded.

https://hoosierbladesmith.wordpress.com


Top
 Profile

PostPosted: Tue May 28, 2013 11:11 am
Offline
Koa
Koa
User avatar

Joined: Fri Feb 01, 2008 11:37 pm
Posts: 1744
Location: Virginia, USA
Focus: Build
Status: Amateur
It's beautiful wood, even the straight grained stuff you're using.
