I've wanted a cradle to hold guitar bodies while binding. So I made this one. Simple, doesn't need total height adjusting like a cradle being used for some binding jigs.

I put it on a post so I can turn it but still keep the cradle in one spot on the bench. Will be good for installing bindings as well as scraping.





Sent from my iPhone using Tapatalk

_________________
My Facebook Guitar Page

"There's really no wrong way, as long as the results are what's desired." Charles Fox

"We have to constantly remind ourselves what we're doing....No Luthier is putting a man on the moon!" Harry Fleishman

"Generosity is always different in the eye of the person who didn't receive anything, but who wanted some." Waddy Thomson


These users thanked the author Rod True for the post (total 2): Pmaj7 (Fri Sep 30, 2016 4:13 pm) • jack (Fri Sep 30, 2016 11:58 am)
Top
 Profile

meddlingfool
PostPosted: Fri Sep 30, 2016 12:11 am
Offline
Brazilian Rosewood
Brazilian Rosewood

Joined: Wed Feb 20, 2008 7:15 pm
Posts: 7547
First name: Ed
Last Name: Bond
City: Nanaimo
Country: Canada
Focus: Build
Status: Professional
Looks handy but I would mount it way closer to the front. That looks like back pain in the making...
Top
 Profile

Rod True
PostPosted: Fri Sep 30, 2016 1:01 am
Offline
Contributing Member
Contributing Member
User avatar

Joined: Tue Jan 04, 2005 10:03 am
Posts: 6680
Location: Abbotsford, BC Canada
When I rotate to the lower bout it's only 1/4" from the bench edge....

_________________
My Facebook Guitar Page

"There's really no wrong way, as long as the results are what's desired." Charles Fox

"We have to constantly remind ourselves what we're doing....No Luthier is putting a man on the moon!" Harry Fleishman

"Generosity is always different in the eye of the person who didn't receive anything, but who wanted some." Waddy Thomson
Top
 Profile

meddlingfool
PostPosted: Fri Sep 30, 2016 2:42 am
Offline
Brazilian Rosewood
Brazilian Rosewood

Joined: Wed Feb 20, 2008 7:15 pm
Posts: 7547
First name: Ed
Last Name: Bond
City: Nanaimo
Country: Canada
Focus: Build
Status: Professional
You know what works for you!
Top
 Profile

edstrummer
PostPosted: Fri Sep 30, 2016 7:08 am
Offline
Cocobolo
Cocobolo
User avatar

Joined: Tue Mar 25, 2014 4:36 pm
Posts: 159
First name: Ed
Last Name: Miller
City: Wood Dale
State: Illinois
Country: USA
Focus: Build
Status: Amateur
Rod True wrote:
I've wanted a cradle to hold guitar bodies while binding. So I made this one. Simple, doesn't need total height adjusting like a cradle being used for some binding jigs.

I put it on a post so I can turn it but still keep the cradle in one spot on the bench. Will be good for installing bindings as well as scraping.





Sent from my iPhone using Tapatalk

Looks very useful. Nice job.

Sent from my SM-T230NU using Tapatalk
Top
 Profile

bcombs510
PostPosted: Fri Sep 30, 2016 7:34 am
Offline
Brazilian Rosewood
Brazilian Rosewood
User avatar

Joined: Mon Jul 27, 2015 8:21 am
Posts: 3728
First name: Brad
Last Name: Combs
Focus: Build
Status: Amateur
That's a great idea. I have the carrier like what you have there that I use for the binding cutting jig. I may put a removable pin in that and use it like your idea here. Thanks for sharing it. Right now I'm using a cork lined L shaped board with a catch that catches the front edge of the bench. It doesn't spin though. This is better.

Thanks!
Brad

_________________
Insta - https://www.instagram.com/cbcguitars/
Facebook - https://www.facebook.com/cbcguitars
Top
 Profile

jfmckenna
PostPosted: Fri Sep 30, 2016 8:21 am
Offline
Brazilian Rosewood
Brazilian Rosewood

Joined: Tue May 13, 2008 10:44 am
Posts: 6262
Location: Virginia
I've been needing to build something like that for a while. I do bindings differently but it could be very useful for other tasks as well.
Top
 Profile

sdsollod
PostPosted: Fri Sep 30, 2016 8:42 am
Offline
Koa
Koa
User avatar

Joined: Thu Jan 10, 2008 5:08 am
Posts: 1906
Location: Raleigh, NC
First name: Steve
Last Name: Sollod
Focus: Build
Status: Amateur
Great idea!

_________________
Steve Sollod (pronounced sorta like "Solid")
www.swiftcreekguitars.com


These users thanked the author sdsollod for the post: Rbello (Fri Sep 30, 2016 1:47 pm)
Top
 Profile

kencierp
PostPosted: Fri Sep 30, 2016 8:55 am
Offline
Koa
Koa

Joined: Sat May 19, 2007 11:03 am
Posts: 1737
Location: Litchfield MI
Focus: Build
Status: Professional

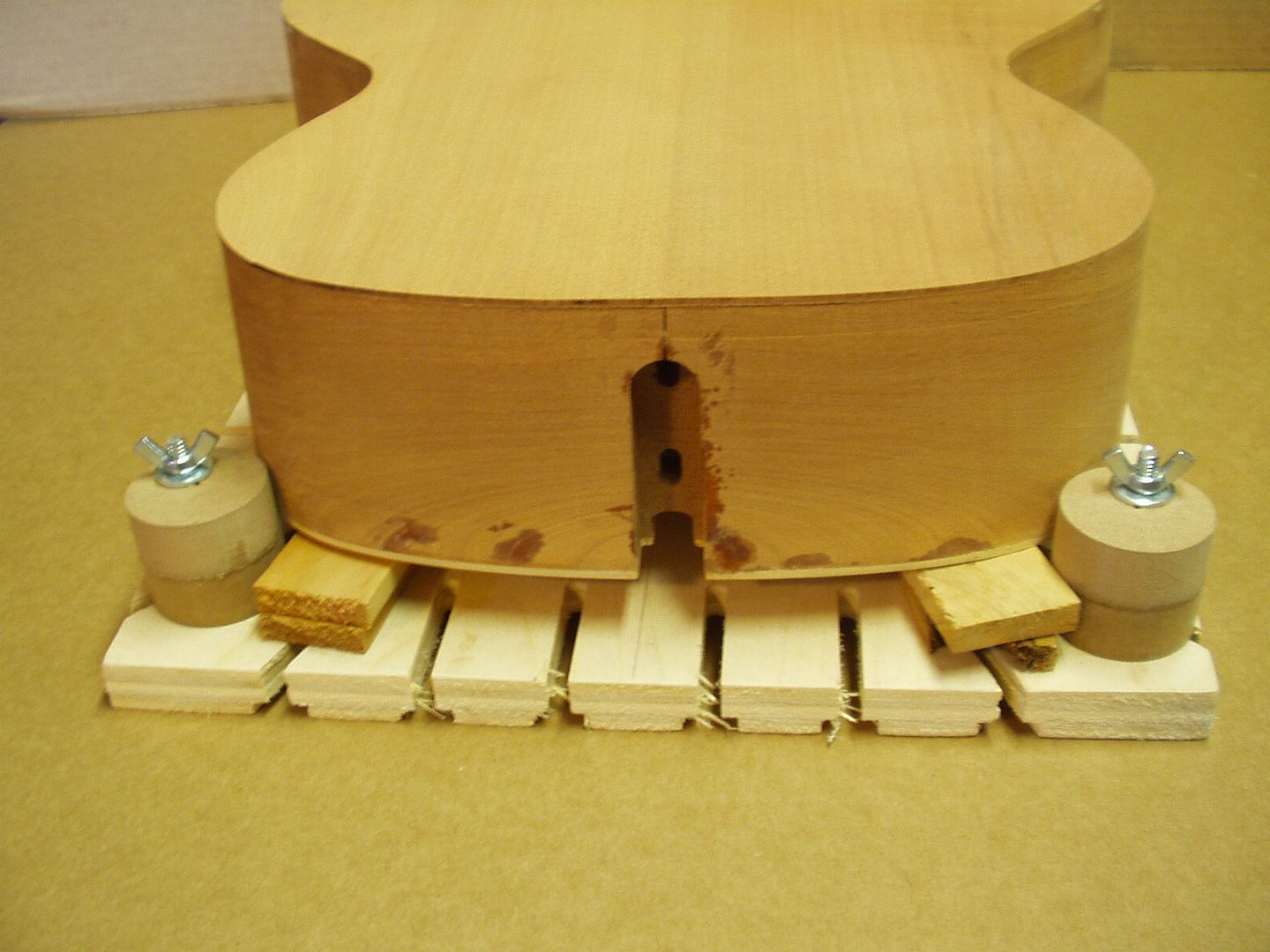

I kind of like that center spindle idea, we'll give it a shot. I saw the cradle design below on line somewhere, super simple we made a few out of a pieces of scrap ply or MDF.



_________________
Ken Cierp

http://www.kennethmichaelguitars.com/


These users thanked the author kencierp for the post: jack (Fri Sep 30, 2016 11:59 am)
Top
 Profile

DannyV
PostPosted: Fri Sep 30, 2016 9:56 am
Offline
Contributing Member
Contributing Member
User avatar

Joined: Sat Dec 30, 2006 3:20 am
Posts: 2593
Location: Powell River BC Canada
First name: Danny
Last Name: Vincent
Nice! I use the same cradle I use for cutting bindings. It looks similar.

Sweet looking guitar Rod. Aussie Blackwood?
Top
 Profile

Rod True
PostPosted: Fri Sep 30, 2016 1:35 pm
Offline
Contributing Member
Contributing Member
User avatar

Joined: Tue Jan 04, 2005 10:03 am
Posts: 6680
Location: Abbotsford, BC Canada
My binding set up use to be this


However I'm moved to the Larrivee style from CLS. So I lost the cradle when I sold my binding jig set up.

I always used the cradle when I was installing the binding but found it a bit difficult to get from one side over to the other, thus the idea to make a basic cradle on a stick :D

Ken, I always like seeing your simple solutions to things......keep it up.

_________________
My Facebook Guitar Page

"There's really no wrong way, as long as the results are what's desired." Charles Fox

"We have to constantly remind ourselves what we're doing....No Luthier is putting a man on the moon!" Harry Fleishman

"Generosity is always different in the eye of the person who didn't receive anything, but who wanted some." Waddy Thomson
Top
 Profile

Rod True
PostPosted: Fri Sep 30, 2016 1:36 pm
Offline
Contributing Member
Contributing Member
User avatar

Joined: Tue Jan 04, 2005 10:03 am
Posts: 6680
Location: Abbotsford, BC Canada
DannyV wrote:
Nice! I use the same cradle I use for cutting bindings. It looks similar.

Sweet looking guitar Rod. Aussie Blackwood?


Yes, 3rd guitar I'll have made from Aussie Blackwood. And Thanks. Looking forward to getting this one finished, hope before Christmas.
